Bespoke 5.3 cu. ft. AI Laundry Hub™ Ultra Capacity Single Unit Washer with AI OptiWash™ and 7.6 cu. ft. Electric Dryer in Satin Green

WASHER FEATURES

• Laundry Hub with Easy Reach Control Panel

• 5.3 cu. ft. Ultra Capacity

• AI Opti Wash

• Flex Auto Dispense System

• Super Speed Wash

• Wi-Fi Connectivity with SmartThings*

• Steam Wash

• 20-Year Motor Warranty**

• Energy Star® Certified

• AI Smart Dial

• Self Clean+

• 1200 RPM Maximum Spin Speed

• DIT Motor

DRYER FEATURES

• AI Optimal Dry

• Super Speed Dry

• Steam Sanitize+

• Vent Sensor

• Sensor Dry

• Stainless Steel Drum

• Drum Light

• Lint Filter Alert

• Drying Rack

• Wi-Fi Connectivity with SmartThings*

• 3-Way Venting (Back, Left, Right)

CONVENIENCE

• Child Lock

• Filter Check Indicator

Dispenser Trays

• Main Wash, Bleach, Auto Detergent, Auto Softener

Awards and Certificates
ENERGY STAR® Awards	Yes

Control Panel
Laundry Hub™ Center with Easy Reach Control Panel	Yes

Design
Color	Satin Green
Display Color (LED)	White
Display Type	Mono LCD + LED
Door Type	Black Deco+Glass
Jog Dial	Yes
Door Safety	Yes

Detergent
Bleach	Yes
Auto Dispenser	Yes
Flex Auto Dispense System	Yes

Dimensions
Depth with Door Open 90 Degrees (in.)	55 15/16"
Washer Capacity	5.3

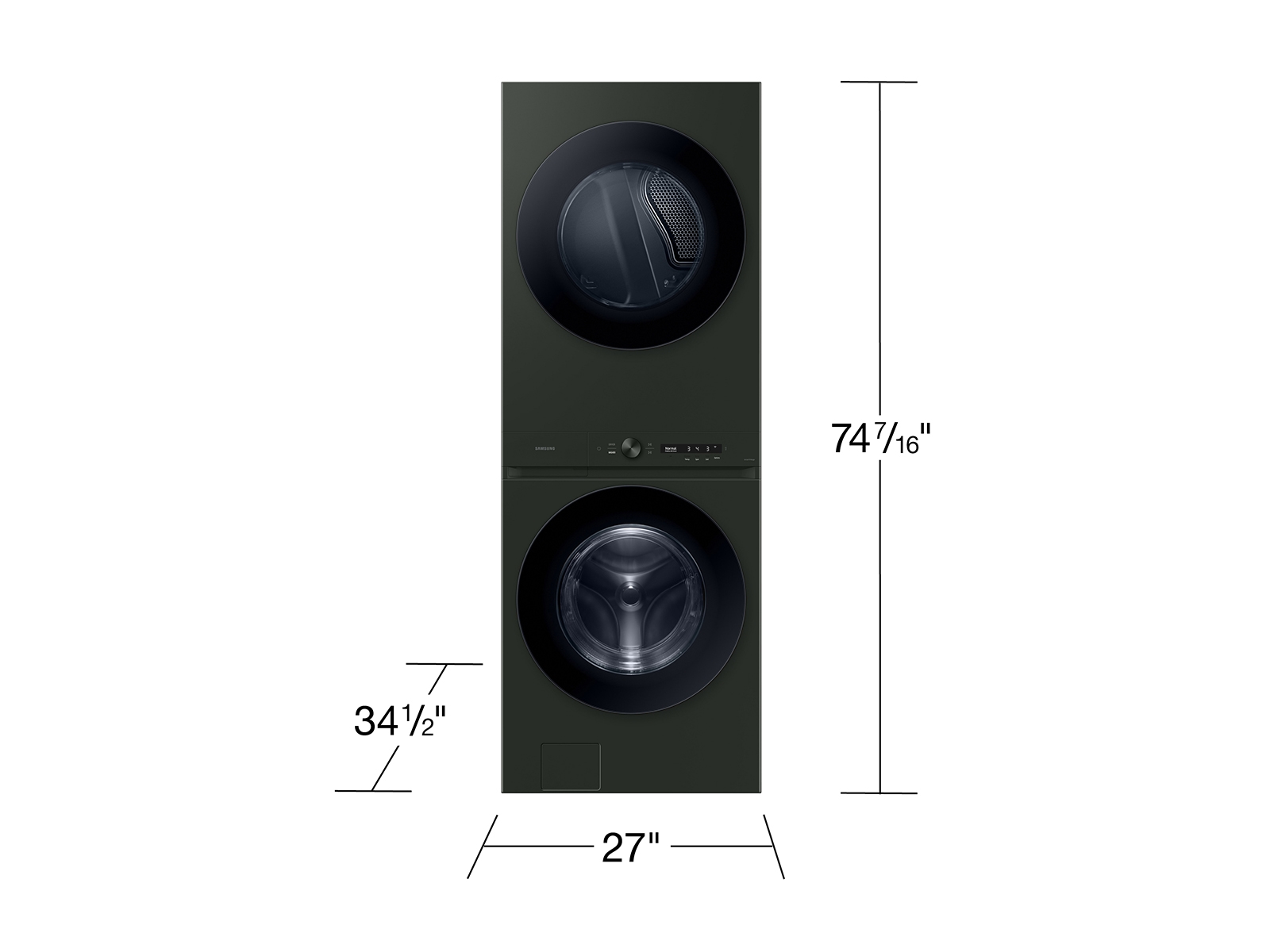

Product Dimensions	27" W x 74.4" H x 34.4" D
Shipping Dimensions	29.4" W x 81.9" H x 34.1" D
Width Standard (27"-27.5")	Yes
Dryer Capacity	7.6

Dry Levels
Very Dry	Yes
More Dry	Yes
Normal Dry	Yes
Less Dry	Yes
Damp Dry	Yes

Dryer Electrical Ratings
Cycle Time (AHAM 8lbs)	39 min
DOE Energy Factor (lb/kWh)	3.48(lb/kWh)
Heating Element	20,000 BTU / Hr

Dryer Energy Usage
Liter/Cycle	215 Liter
DOE Energy Factor (lb/kWh)	3.48(lb/kWh)

Dryer Temperature Levels
High	Yes
Medium	Yes
Medium Low	Yes
Low	Yes
Extra Low	Yes

Drying Options
My Cycles	Yes
Mixed Load Bell (Damp Alert)	Yes
Wrinkle Prevent	Yes
Eco Dry	Yes
AntiStatic	Yes
Smart Monitor	Yes
Child Lock	Yes
Volume	Yes
AI Pattern	Yes
Wi-Fi	Yes
Vent Blockage Test	Yes
Number of Dryer Options	14
Temperature Levels	5

Drying Technology
Sensor Drying	Yes

Energy Usage
Energy Guide Label	103 kWh/Year
Energy Gallons / Year	4491
ENERGY STAR® Certified	Yes

Fabric Care
Wash Cycles	24
Wash Options	18
Swirl+ Interior Drum	Yes

Key Features
Vibration Reduction Technology™	Yes
ENERGY STAR® Certified	Yes
Super Speed	28 Minutes
AI Smart Dial	Yes
Auto Dispense System	Flex Dispense
AI OptiWash™ & AI Optimal Dry	Yes
Spin Speeds	5
SmartThings	Yes
Easy Reach Control Panel	Yes
Laundry Hub™	Yes
Bespoke AI	Yes
Dryer Total Capacity (cu. ft.)	7.6 cu. ft
Dryer Drum Material	Stainless Steel
Super Speed Dry	Yes
Sensor Dry	Yes
Stackable	Yes

Manual Drying Cycles
Time Dry	Yes
Air Fluff	Yes
Quick Dry	Yes
Rack Dry	Yes

Power
Voltage / Frequency	120V / 60Hz
Ampere	15 Amps

Prop 65
WARNING	Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Quiet Performance
Vibration Reduction Technology™ Plus	Yes

Sensor Drying Cycles
Steam Refresh	Yes
Wrinkle Away	Yes
Eco Normal	Yes
Super Speed	Yes
Wool	Yes
Shirts	Yes
Denim	Yes
Normal	Yes
Heavy Duty	Yes
Towels	Yes
Perm Press (permanent press)	Yes
Bedding	Yes
Delicates	Yes
Activewear	Yes
AI Optimal Dry	Yes
Steam Sanitize+	Yes

Spin Speeds
Extra High	Yes
High	Yes
Medium	Yes
Low	Yes
Extra Low	Yes
Maximum Spin Speed	1,200 RPM

Standard Features
Ultra 5.3 cu. ft. Capacity Washer	5.3 cu. ft.
Number of Preset Wash Cycles	24
Motor Power	Digital Inverter Motor
Spin Speeds	5
Internal Water Heater	Yes
Number of Wash Options	18
Controls Display	Mono LCD + LED
Child Lock	Yes
Interior Light	Yes
End of Cycle Signal	Yes
Power Source	Electric
Remaining Time Display	Yes
Door Safety	Yes
Door Handle	Inner
Temperature Levels	5
Drum Interior	Swirl+
Wi-Fi Connectivity with SmartThings	Yes
Voice Compatible	Bixby, Amazon Alexa, Google Assistant
Digital Inverter Motor	Yes
Bixby Compatible	Yes
Dryer Vent Sensor	Yes
Dryer Vent Blockage Test	Yes
Dryer Heater	Dual
Dryer Temperature Setting Options	5
Dryer Venting System	2 Way Venting
Dryer Interior Light	Yes
Dryer Lint Filter Indicator	Yes
Dryer Power Source	Gas
Dryer Temperature Levels	5
Dryer Mixed Load Bell (Damp Alert)	Yes
Drying Rack	Yes
Number of Preset Drying Cycles	20

Temperature Levels
Extra Hot	Yes
Hot	Yes
Warm	Yes
Cold	Yes
Tap Cold	Yes

Type
Dryer Type	Gas

Warranty
One (1) Year Parts and Labor	Yes
Three (3) Year Stainless Steel Tub (Part Only)	Yes
20-year Digital Inverter Motor	Yes

Wash Cycles
Eco Cold Wash	Yes
Normal	Yes
Heavy Duty	Yes
Permanent Press	Yes
Steam Sanitize	Yes
Bedding	Yes
Activewear	Yes
Wool	Yes
Rinse + Spin	Yes
Spin Only	Yes
Delicates	Yes
Towels	Yes
Colors	Yes
Self Clean+	Yes
Small Load	Yes
Denim	Yes
Super Speed	Yes
Steam Allergen	Yes
Steam Normal	Yes
Power Steam	Yes
Steam Whites	Yes
Steam Bulky	Yes
Power Rinse	Yes
AI OptiWash™	Yes
Perm Press	Yes

Wash Options
Extra Rinse	Yes
Super Speed	28 Minutes
Smart Control	Yes
Child Lock	Yes
Pre-Soak	Yes
Delay End	Yes (24 hrs.)
AI Pattern	Yes
Calibration	Yes
Wi-Fi	Yes
Language	Yes
Factory Reset	Yes
Dispenser 1	Yes
Dispenser 2	Yes
Pump Clean	Yes
Self Diagnosis	Yes
Sounds	Yes
Bixby	Yes
Volume	Yes

Washer Electrical Ratings
Cycle Time (AHAM 8lbs)	45 Min
Cycle Time (Super Speed)	28 Min

Washer Energy Usage
CEE Rating	Advanced (Tier 3)
IMEF	3.1
IWF	2.9

Washer Temperature Levels
Extra Hot	Yes
Hot	Yes
Warm	Yes
Cold	Yes
Tap Cold	Yes

Weight
Product Weight	341.7 lbs.
Shipping Weight	352.7 lbs.
